Product Overview:The BRCN-PCMGM Direct Mount Flange-Sealed Pressure/Level Transmitter is a flat-mount product designed to meet customer requirements for flange installation. Utilizing premium pressure-sensitive core components that undergo long-term aging and stability screening, this product delive
Product Overview:

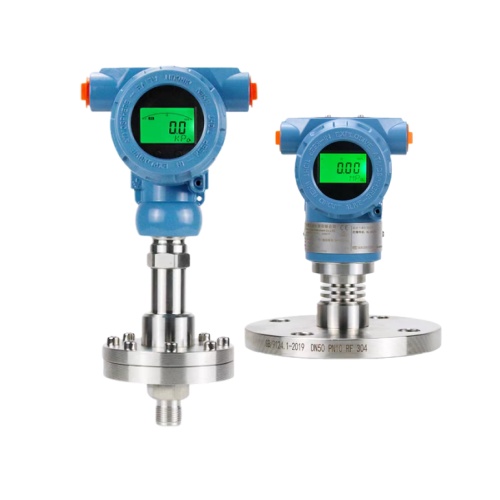

The BRCN-PCMGM Direct Mount Flange-Sealed Pressure/Level Transmitter is a flat-mount product designed to meet customer requirements for flange installation. Utilizing premium pressure-sensitive core components that undergo long-term aging and stability screening, this product delivers stable and reliable performance for measuring pressure or liquid level. Featuring international standard flanges as the connection interface, this transmitter enables direct flange mounting at the user site. With its exposed stress diaphragm providing direct pressure sensing, it facilitates easy cleaning while meeting demanding conditions such as moisture resistance, waterproofing, and explosion-proof requirements. This series is widely applied in industrial process control, petroleum, chemical, metallurgical, and other fields involving viscous media and particulate matter.
Product Features:
Flange mounting
Two-wire mode with 4-20mA analog output and HART® protocol data communication
Intelligent LCD display with backlight
Large diaphragm size, fully welded seal
Long-term reliability and durability
Measures pressure or level in gases, liquids, and steam
Optional corrosion-resistant diaphragms (Tantalum, Hastelloy C, 316L, 316L with PTFE coating)
Particularly suitable for high-temperature viscous liquids
More cost-effective than comparable imported instruments
Technical Specifications:
Range | -100kPa...0~0.2kPa...25MPa | ||
Form of pressure | Gauge pressure or absolute pressure | ||
Output signal | 4~20mA, 4~20mA+HART protocol (24V power supply) | ||
Accuracy Class | ±0.2(typ.); ±0.5%FS(max.) | ||
Operating Temperature | -20℃~350℃ | ||
Ambient temperature | -20℃~75℃ | ||
Insulation Resistance | ≥100MΩ/500VDC (200MΩ/250VDC) | ||
Protection Rating | IP65 | ||
Explosion-proof rating | Exd II BT6 Gb | ||
Long-term stability | ±0.2%FS/year | ||
| Structural Properties | |||
Diaphragm Material | 316L (316L sprayed with PTFE, Hastelloy C, tantalum, Tetrafluoro) | ||
Filling fluid | silicone oil | ||
Housing Material | Aluminum or stainless steel | ||
Electrical Interface | M20×1.5 | ||
Flange diameter | DN25, DN50, DN80, DN100, Other | ||
Weight | 3.5kg (DN50) | ||
