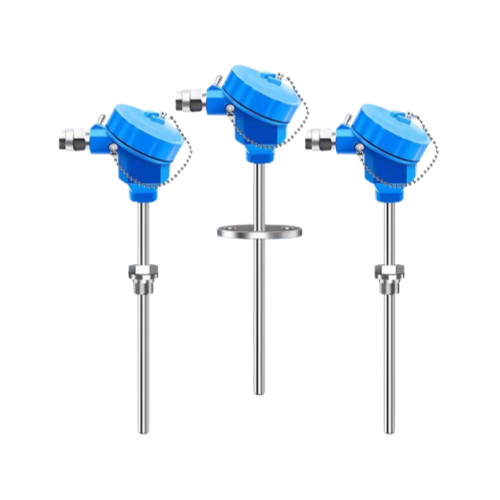

Explosion-proof Thermal Resistor

Product Application:
Usually used in conjunction with display instruments, recording instruments, electronic computers and so on. Directmeasurement of various production processes (-200 ~ 500) °C range of Iiquid, steam and gas media and so Ii d surface temperature.

Product Principle:
According to the gap explosion-proof principle, explosion-proof thermocou pies are designed with sufficient strength of the junction box and other components, all the parts that will produce sparks, arcs and dangerous temperatures are sealed in the junction box cavity. When an explosion occurs in the cavity, it can be quenched and cooled through the gap between the joint surfaces, so that the flame and temperature after the explosion can not be transmitted outside the cavity, thus providing explosion-proof.

Product Features:
•Suitable for a wide range of explosion-proof environments;
•Spring compression type temperature sensing element good vibration resista nee;
•large measuring range;
•High mecha n ica I strength, good pressure resistance.

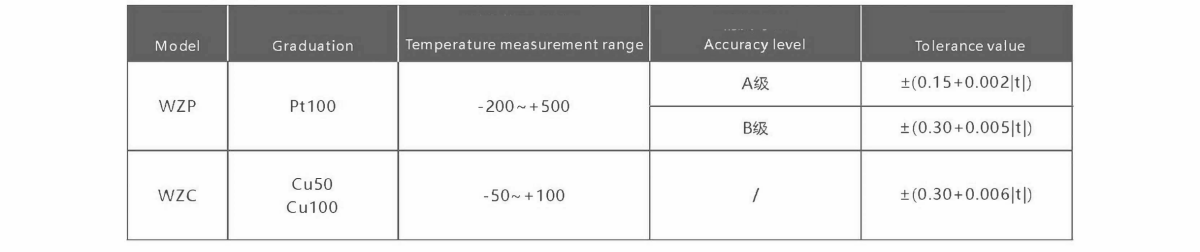

Temperatu re measurement range and to Ieranee:

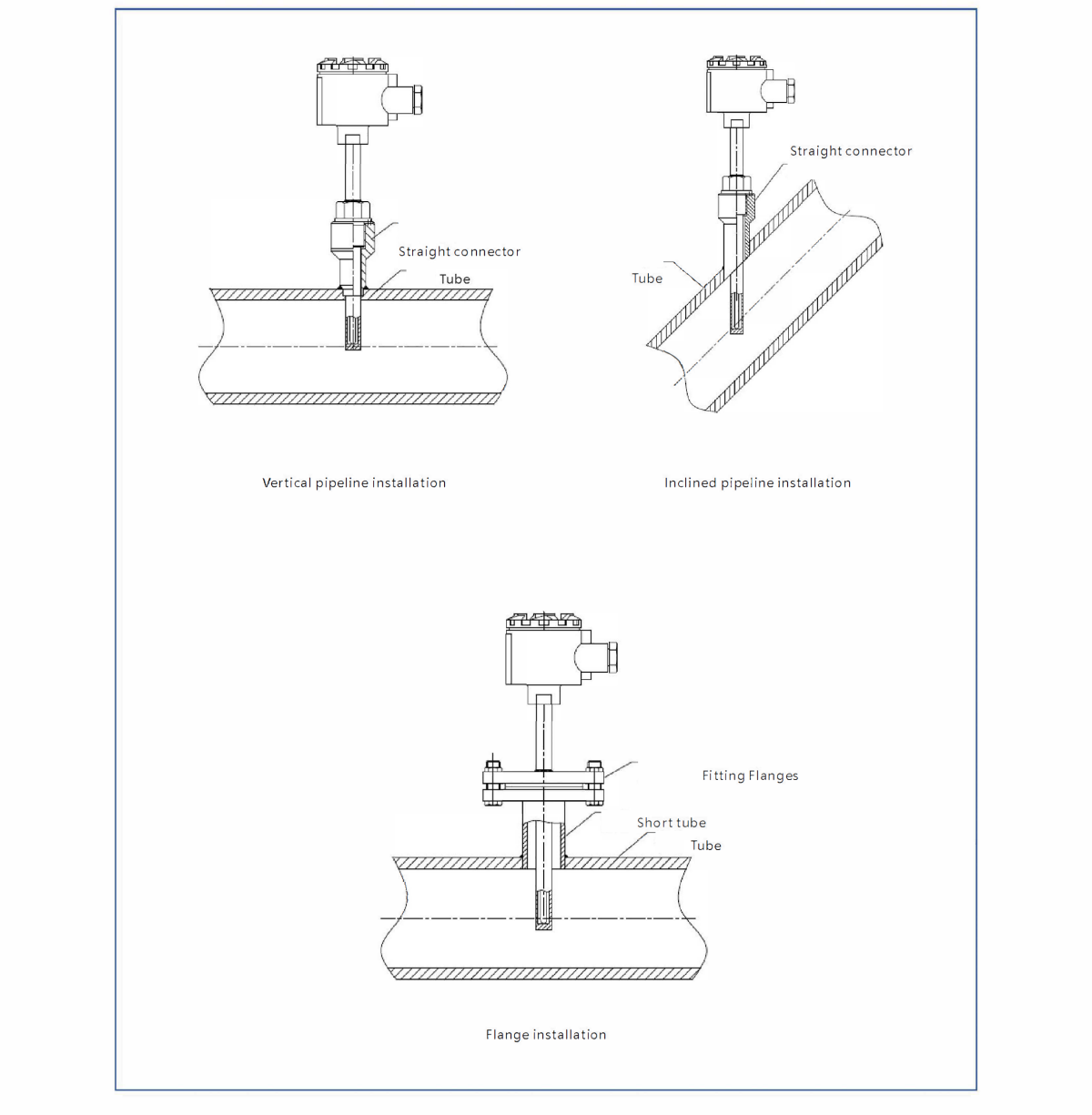

Installation form:
