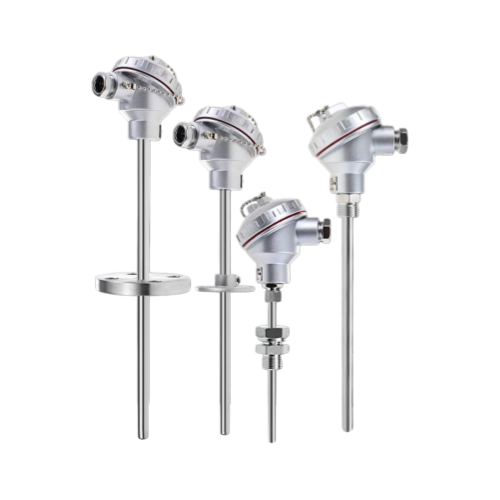

Assembly Thermal Resistor

Product Application:
Usually used in conjunction with display instruments, recording instruments, electronic computers and so on. Direct measurement of various production processes (-200~500) °C range of liquid, steam and gas media and solid surface temperature.

Product Principle:
Thermal Resistors measure temperature by utilizing the characteristic that when a substance changes temperature, its resistance changes with it. When the resistance value changes, a working instrument displays the temperature value corresponding to the resistance value.

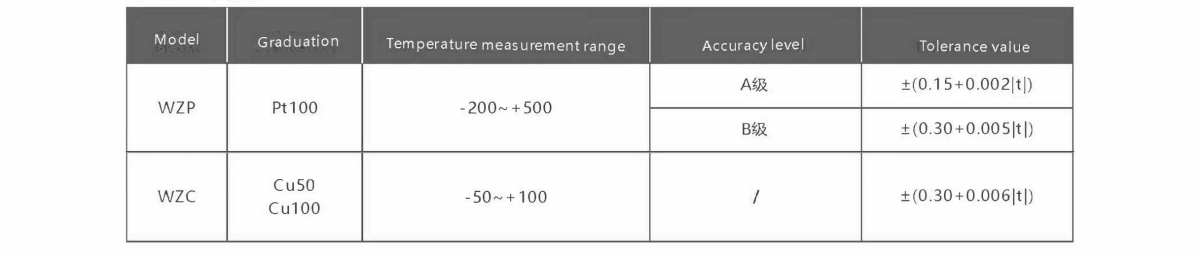

Temperature measurement range and to Ieranee:

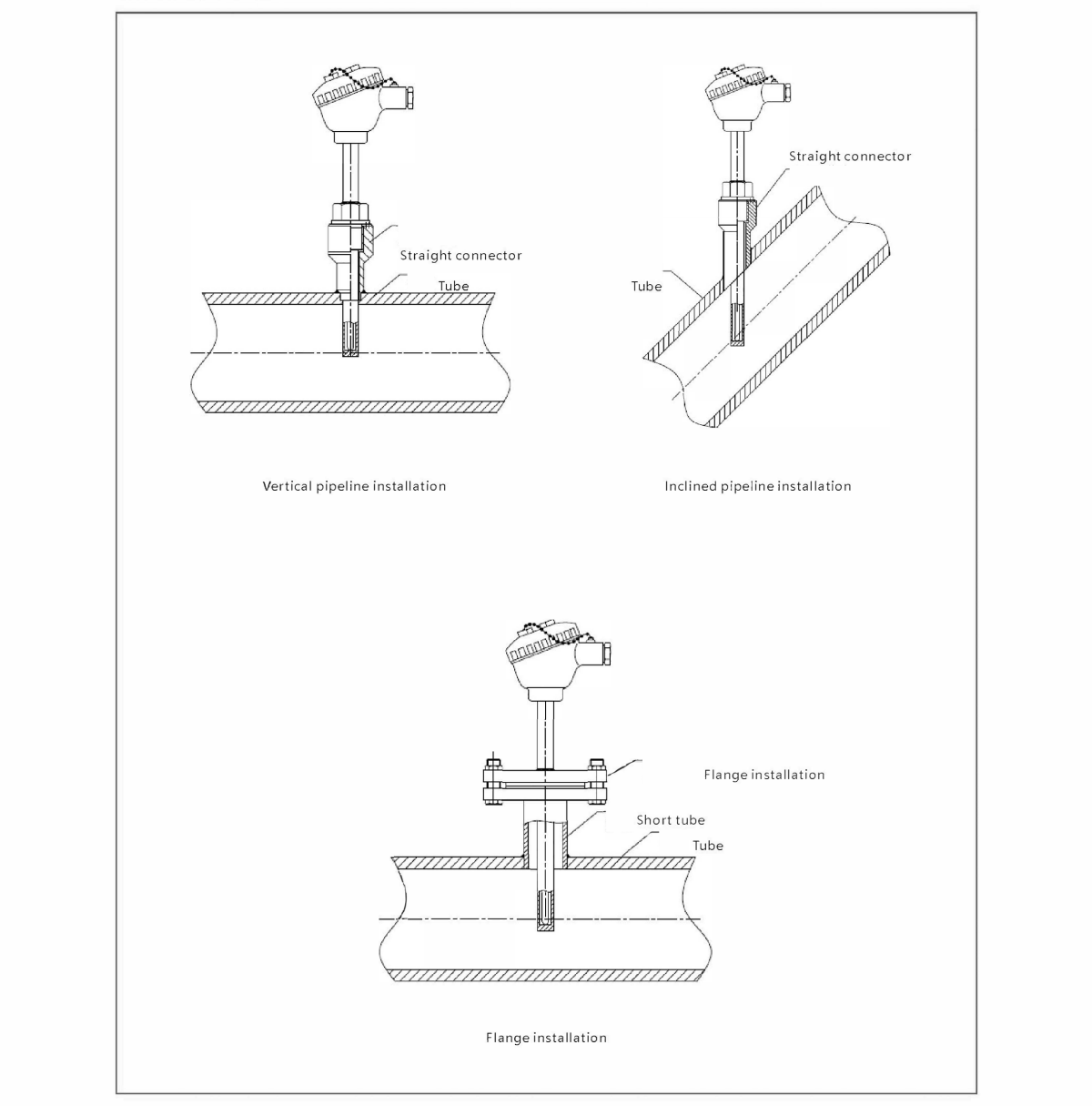

Installation form:
