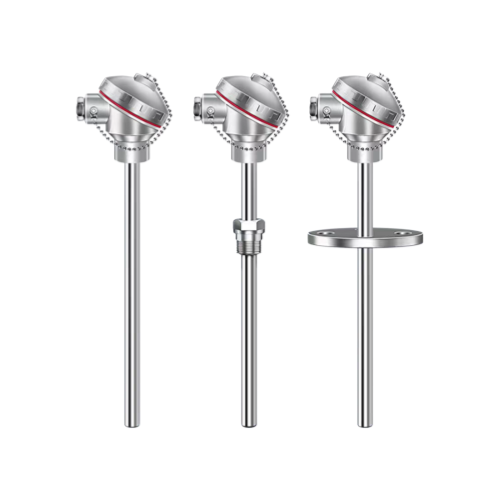

Armoured Thermal Resistor

Product Application：
Usually used in conjunction with display instruments, recording instruments, electronic computers and so on. Direct measurement of various production processes (-200~500) °C range of liquid, steam and gas media and solid surface temperature.

Product Principle:
Armoured Thermal Resistors measure temperature by utilizing the characteristic that when a substance changes temperature, its resistance changes with it. When the resistance value changes, a working instrument displays the temperature value corresponding to the resistance value.

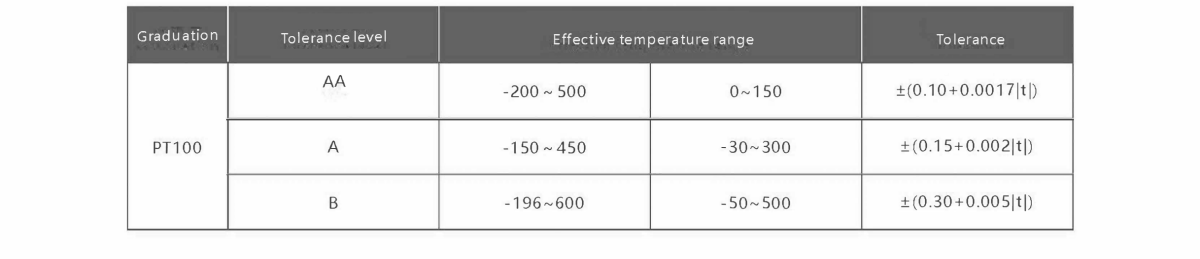

Tolerance level:

Structure diagram:

Selection Guidelines:
Model.
Graduation number.
Accuracy I eve I.
Installation and fixation form.
Protective tu be material.
Length or insertion depth.
Example: Armored thermocou pie, PT100, ClassI, fixed ferrule thread, protective tu be G H3030, length 450mm, insertion depth300mm, WZP K-236, L*I =450*300, Class I, protective tu be GH 3030.
