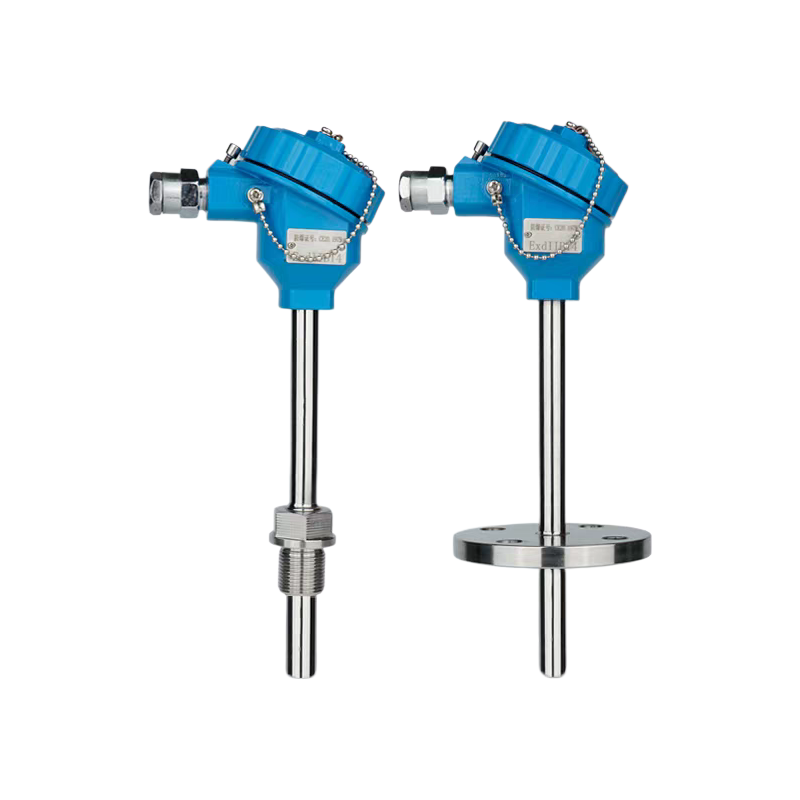

Explosion-proof Thermocouple

Product Application:
UsuaIIy used in conjunction with dispIay instrumentsf recording instruments1 eIectronic computers and so on. Direct measurement of various production precesses (0 ~ 1 300) °C range of I iq u id, steam and gas media and so I id surface tern perature.

Product Principle:
According to the gap explosion-proof principle, explosion-proof thermocou pies are designed with sufficient strength of the junction box and other components, all the parts that will produce sparks, arcs and dangerous temperatures are sealed in the junction box cavity. When an explosion occurs in the cavity, it can be quenched and cooled through the gap between the joint surfaces, so that the flame and temperature after the explosion can not be transmitted outside the cavity, thus providing explosion-proof.

Product Features:
•Suitable for a wide range of explosion-proof environments.
•Spring compression type temperature sensing element,good vibration resistance.
•large measuring range.
•High mecha n ica I strength, good pressure resistance.

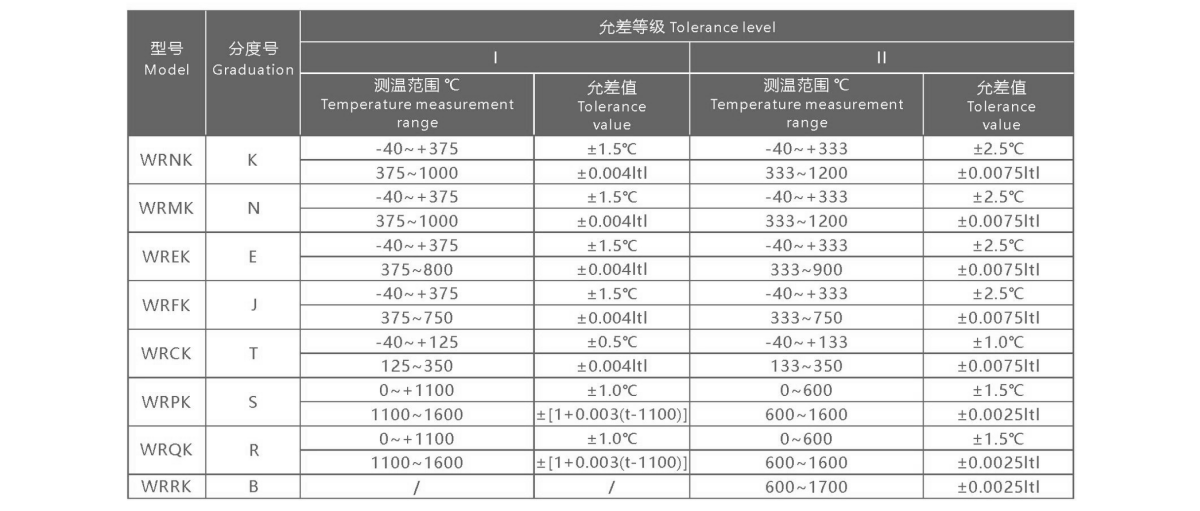

Temperature Range and Tolerance:

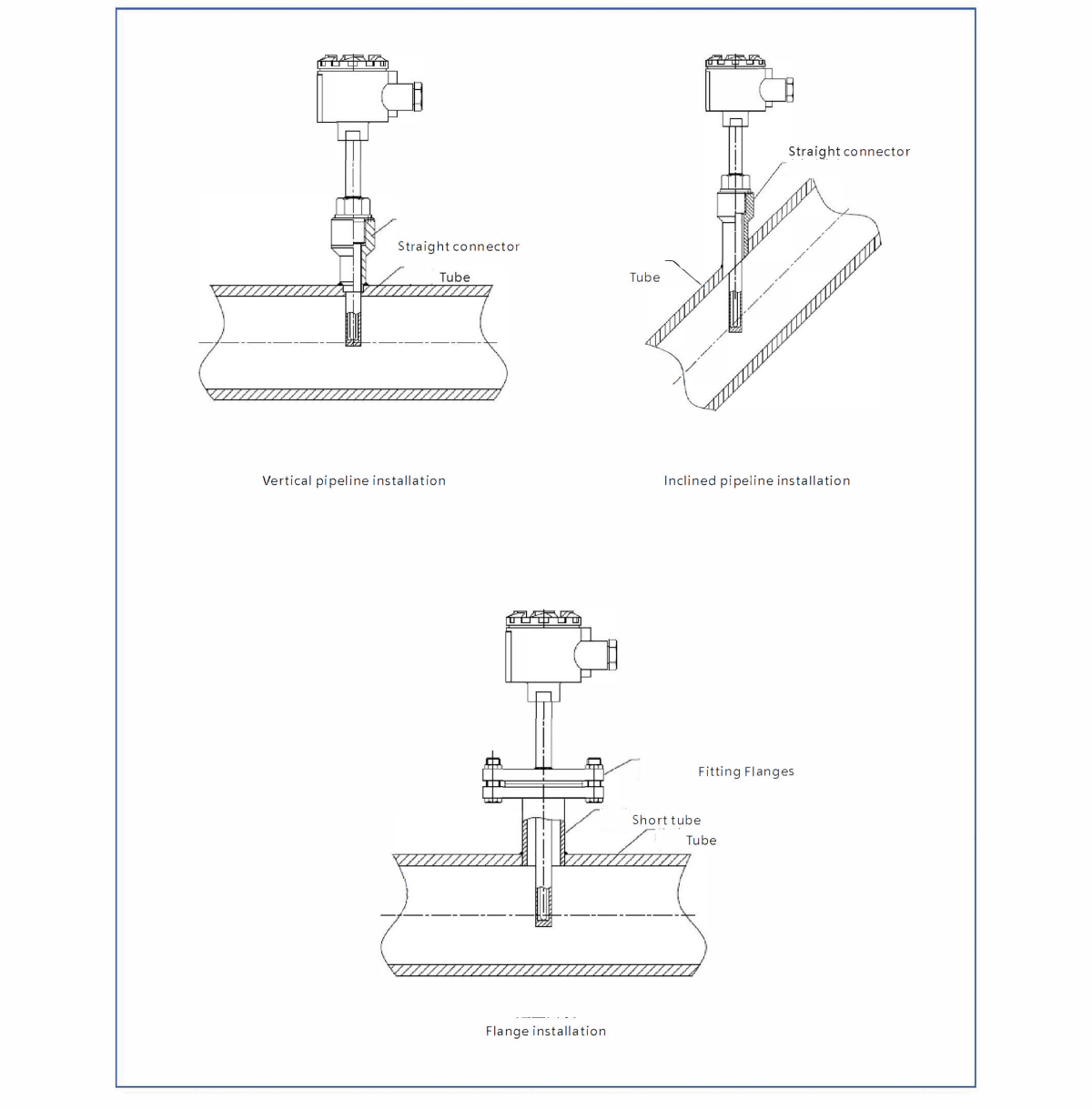

Installation form：
