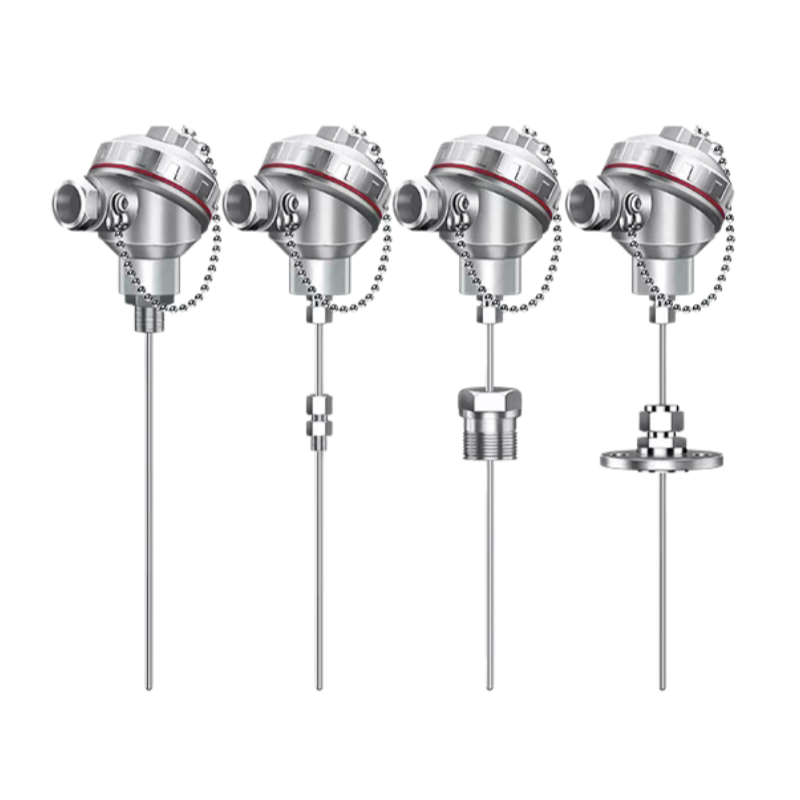

Assembly Thermocouple

Product Application：
Usually used in conjunction with display instruments, recording instruments, electronic computers and so on. Direct measurement of various production processes (0~ 1300)°C range of liquid, steam and gas media and solid surface temperature.

Product Principle：
The electrodes of the Armored Thermocouple consist of two different conductor materiaIs. When there is a tern peratu re difference between the measuring end and the reference end, a thermoelectric potential is generated and the working instrument displays the temperature value corresponding to the thermoelectric potential.

Product Features：
•Less thermal response time, reducing dynamic errors.
•Bendable mounting for use.
•large measuring range.
•High mecha n ica I strength, good pressure resistance.
•Junction box protection level IP65, IP66.

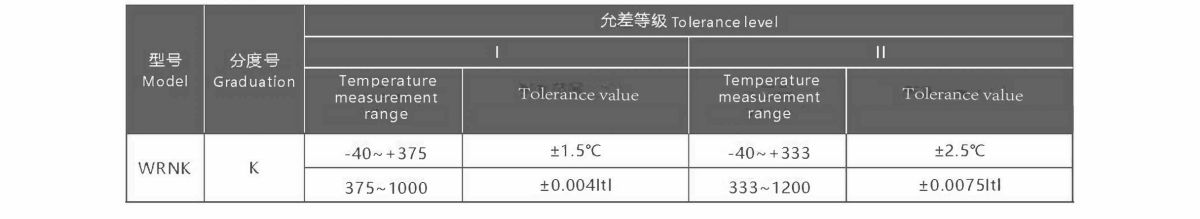

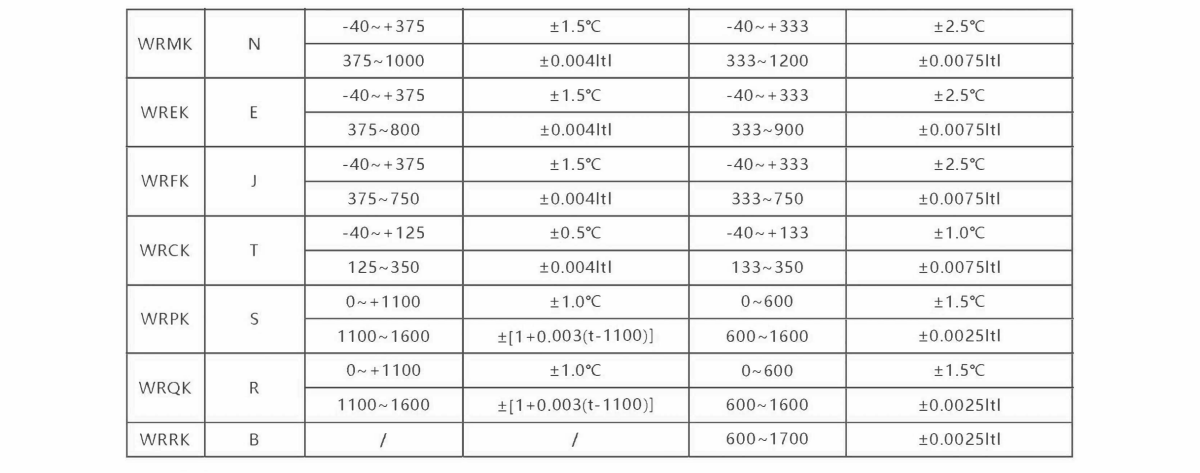

Tern peratu re measurement range and toIeranee：Structure diagram

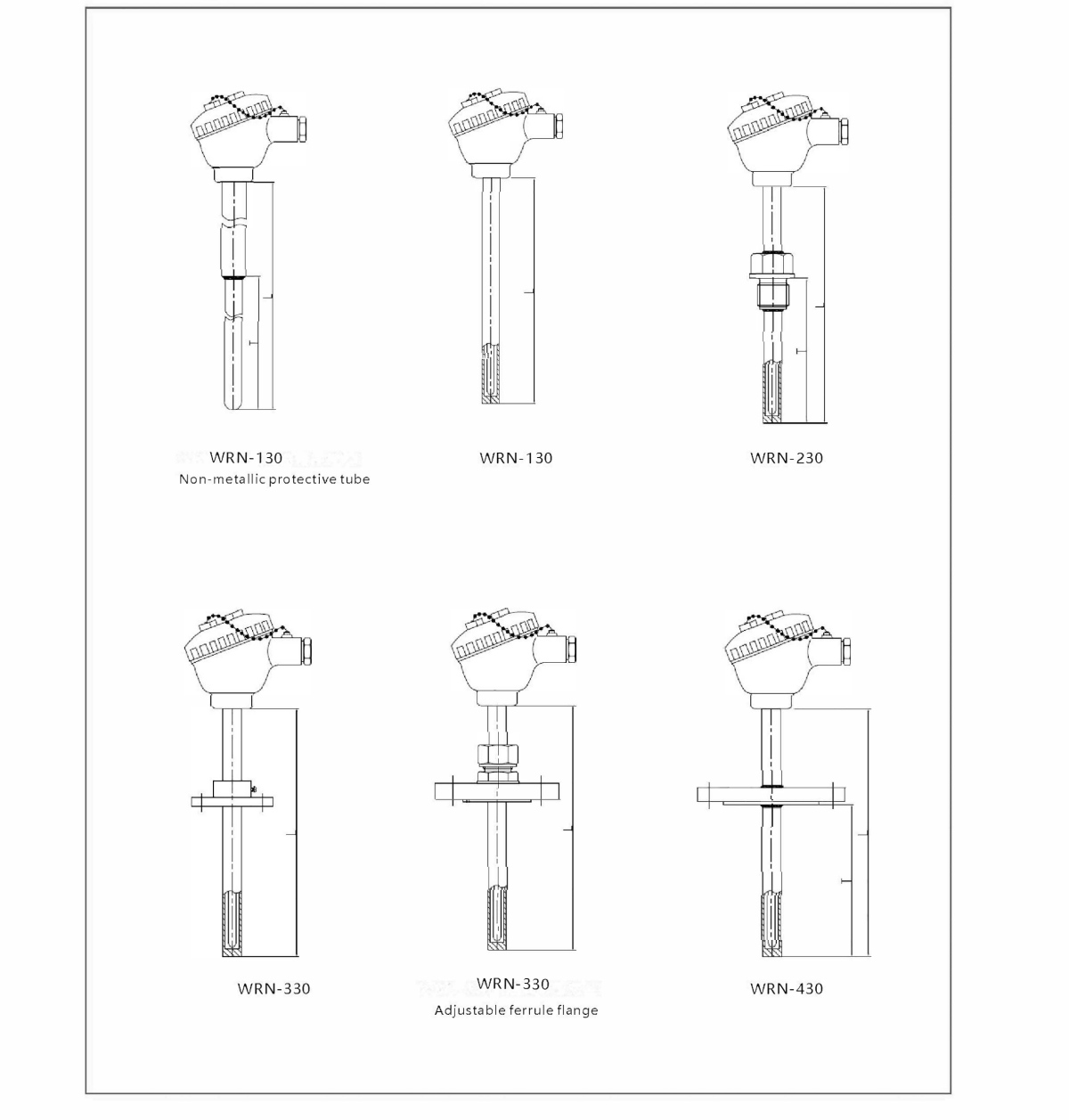

Structure diagram：
