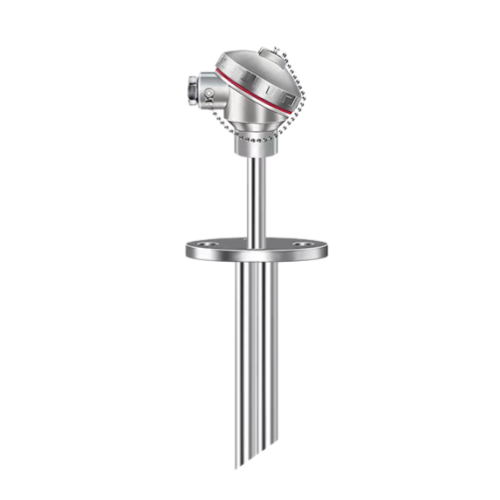

Special Thermocouple for Cracking Furnace

Product Overview:

Pyrolysis furnace-specific thermocouples are sensors used to measure temperatures in high-temperature pyrolysis furnaces, requiring high corrosion resistance and high-temperature performance. The thermocouples provided, though primarily corrosion-resistant resistance temperature detectors (RTDs), also feature outstanding corrosion resistance suitable for various harsh environments. They support custom fabrication, allowing connection types and other parameters to be adjusted according to actual pyrolysis furnace requirements to ensure accuracy and long-term stability. Featuring rapid thermal response and moderate dimensions, they facilitate easy installation and maintenance. The protective sheaths for pyrolysis furnace thermocouples employ a specialized design that allows them to closely adhere to the inner surface of the furnace tube without impeding material flow. These thermocouples are well-suited for temperature measurement and control in pyrolysis furnaces during ethylene production processes.

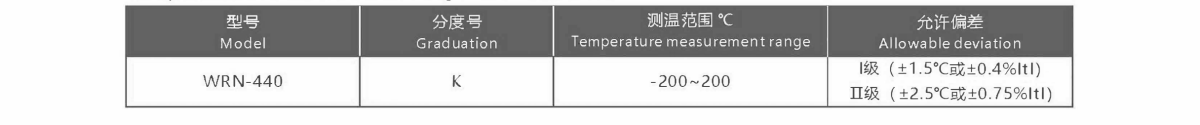

Temperature measurement range and tolerance：

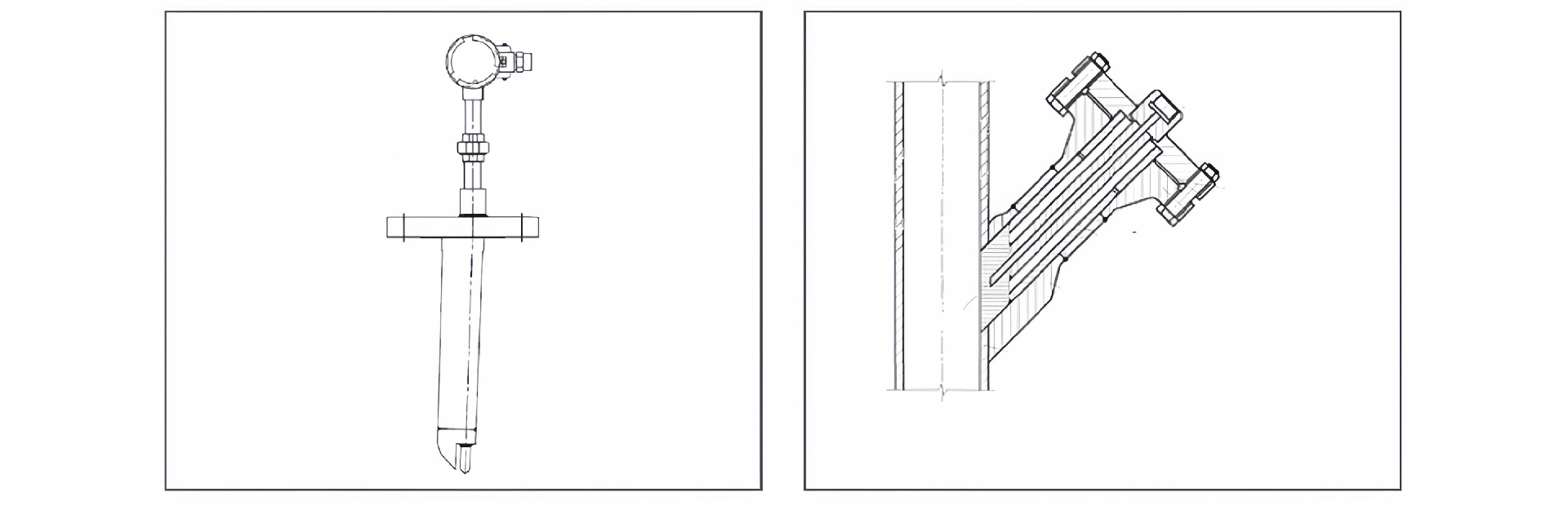

Structural Installation Diagram：
