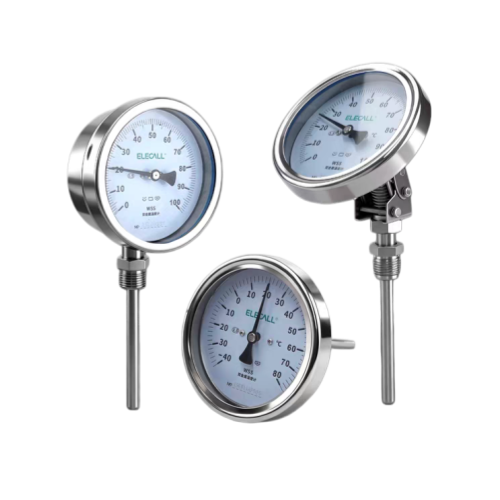

Bimetal Thermometer

Product Application:
Bimetal thermometer is a kind of on-site detection instrument for measuring low and medium temperatures, which can directly measure the temperature of liquid, steam and gas media in the range of -80°C ~ +500°C in various production processes.

Product Principies:
Bi metal thermometers are based on a bi metal sheet wound into a circular bend. When one end is expanded by heat, the pointer rotates and the working instrument displays the temperature value corresponding to the thermo potential.

Product Parameters:
•On-site display of tern perature, intuitive and convenient;
•With automatic power cut off and alarm function;
•Safe and rel ia bl e, long service Iife.
•A variety of structural forms, can meet different

Product Parameters:
1.Executive Standard of the Product: JB/T8803.
2.Nominal diameter of standard disk: 60,100,150.
3.Accuracy level
Bi metal Thermometer: Level 1.0, Level 1.5; Armored Thermocouple (Pt100): Level A, Level B
4.Thermal response time
5.Protection level: IP55, IP65, IP66.
6.Angle adjustment error: the angle adjustment error should not exceed 1.0% of its range.
7.Return error: the return error of the thermometer sh ou Id not be g reater than the abso I ute value of the basic error Iimit.
8.Repeatability: thermometer repeatability limit range cut should not be greater than 1 /2 of the absolute value of the basic error Iimit.
9.Temperature measurement range.

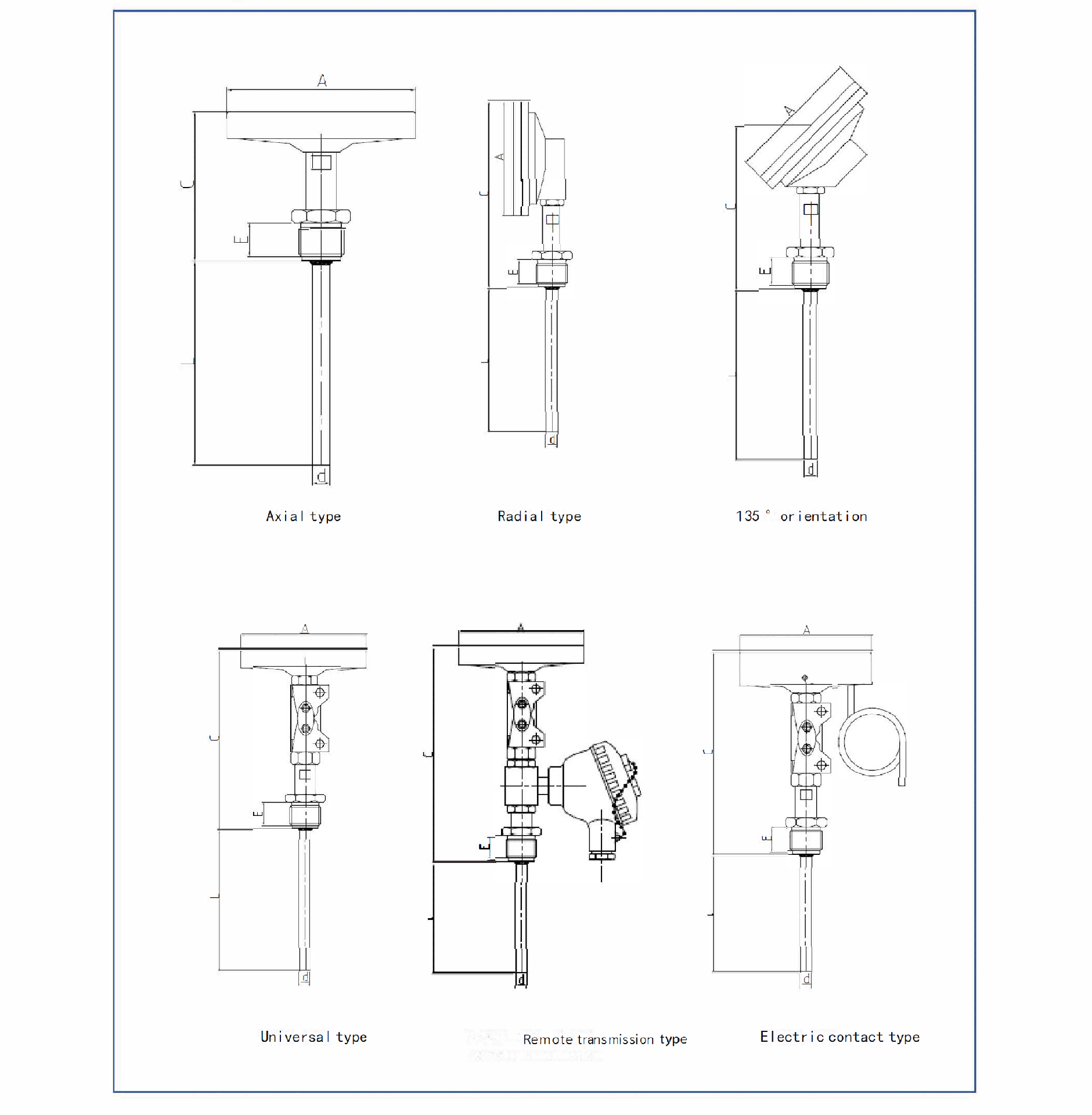

Product Category:
•Bimetal thermometer-ordinary type, dial pointer indicates the temperature on the spot;
•Electric contact bimetal thermometer: in addition to field indication of temperature, through the upper and lower given contacts, when the temperature reaches the given value, contact closure or disconnection to make the control circuit in the relay action, so as to automatically control and alarm;
•With thermocouple (resistance) integrated bimetallic thermometer, armored thermocouple (resistance) installed in the bimetallic thermometer protection tube, not only to meet the requirements of field Temperature measurement requirements, but also to meet the requirements of long-distance transmission;

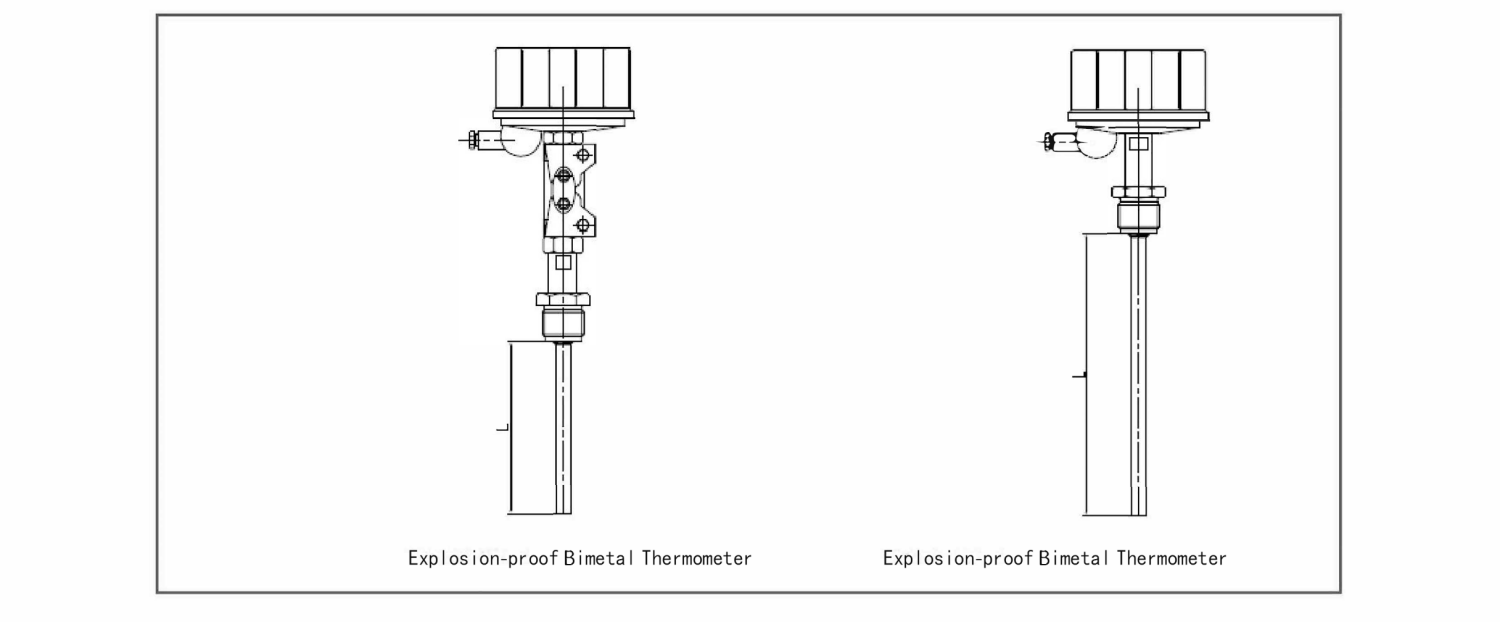

•Explosion-proof bi metal thermometer: Used in the production site there are hydrocarbons and other explosive gases when the electric contact type bimetal thermometer, measuring its various processes (-80 ~ +500) range of liquid, gas medium or so I id surface temperature. In addition to realizing the characteristics of the electric con tact type itselt it also meets the requirements of explosion-proof.

Remote transmission type：
