Product Parameters of Thermal Installation Sleeve•Designed with reference to IEC international standards;•Blind hole machining;•Manufactured and installed at the same time as the equipment;•Different pressure levels to meet different needs;Hydrostatic test:When the pressure resistance and leakage check of the protection pipe are required, the protection pipe shall be tested. The test pressure is 1.5 times of the pressure resistance level of the protection pipe.
Product Application:
With two-section thermocouple (resistance) and bimetal thermometer supporting the use of protection thermocouple (resistance) and bimetal thermometer normal work. And can be used for high pressure and high flow rate occasions.
Product Parameters:
Generally refers to at room temperature, the protection tube can withstand the static external pressure without rupture. Allowable working pressure is not only related to the protective tube material, diameter, wall thickness, and its structural form, installation methods and the measured medium flow rate, type of related.
Product Parameters:
•Designed with reference to IEC international standards;
•Blind hole machining;
•Manufactured and installed at the same time as the equipment;
•Different pressure levels to meet different needs;
Hydrostatic test:When the pressure resistance and leakage check of the protection pipe are required, the protection pipe shall be tested. The test pressure is 1.5 times of the pressure resistance level of the protection pipe.

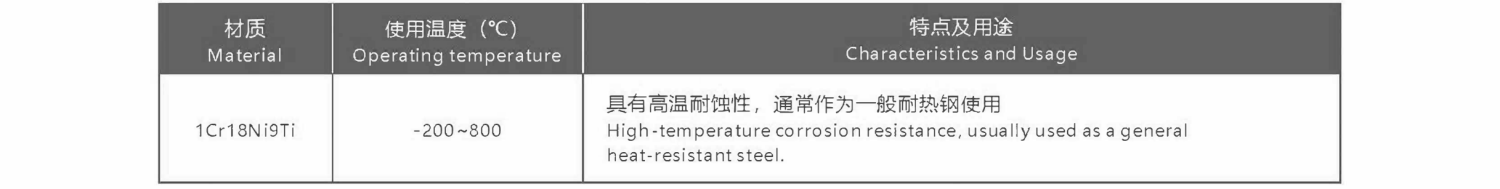

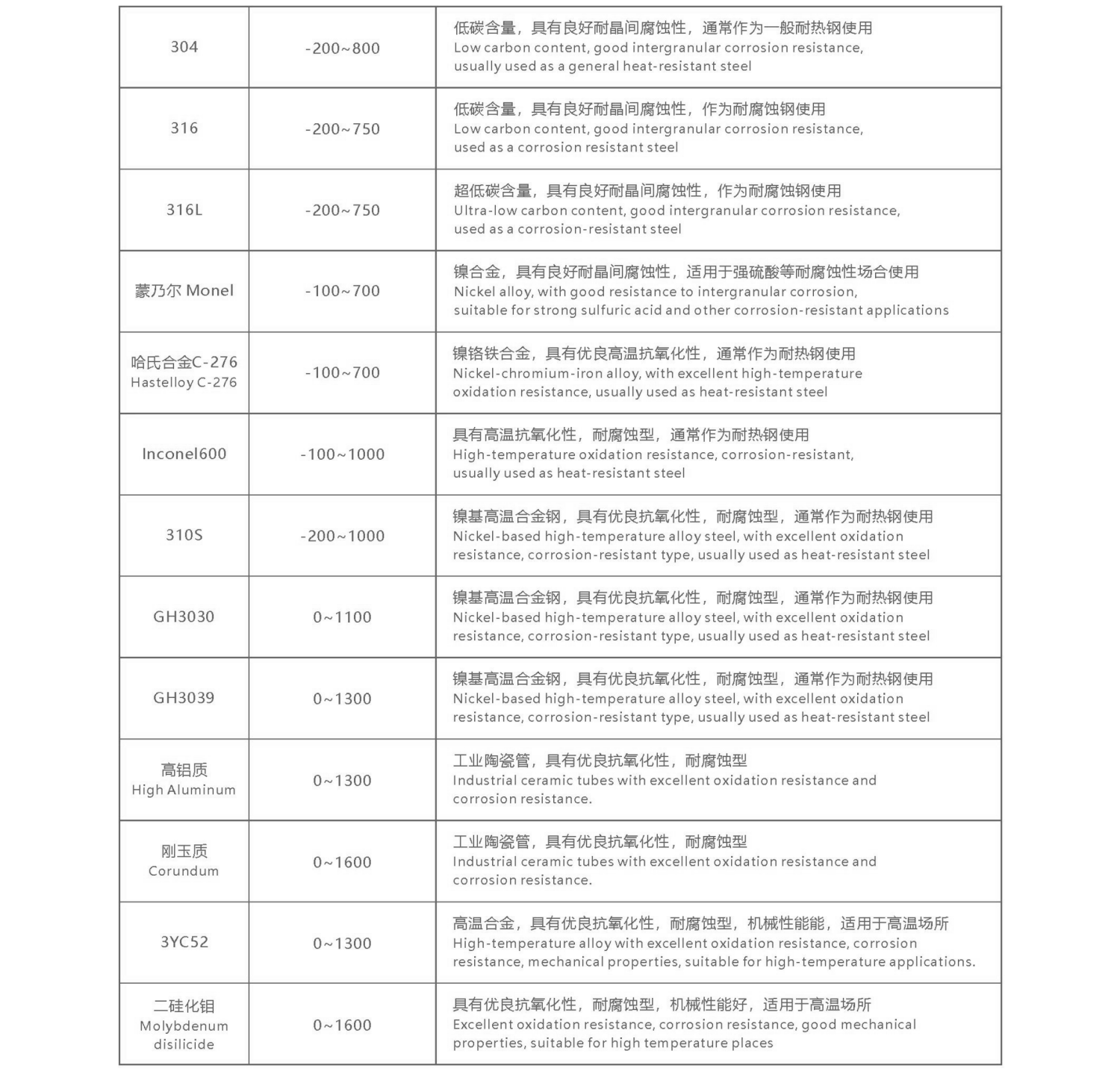

Material and selection of protective tube:
