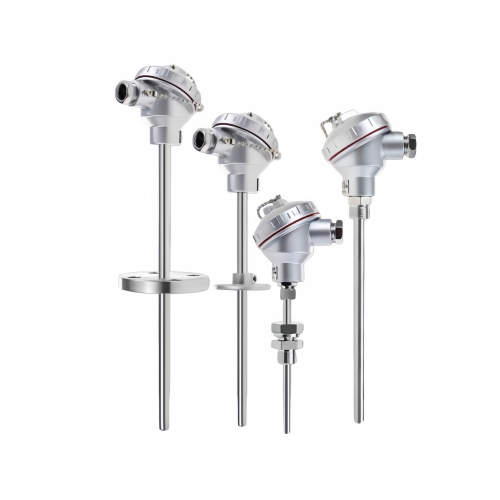

The electrodes of the Arma red Thermocouple consist of two different conductor m ateria Is. When there is a tern peratu re difference between the measuring end and the reference end, a thermoelectric potential is generated and the working instrument displays the temperature value corresponding to the thermoelectric potential.
Product Application:
UsuaIIy used in conjunction with dispIay instrumentsi recording instruments1 eIectronic computers and so on. Direct measurement of various production precesses (0 ~ 1300) °(range of I iq u id, steam and gas media and so I id surface tern perature.
Product Principle:
The electrodes of the Arma red Thermocouple consist of two different conductor m ateria Is. When there is a tern peratu re difference between the measuring end and the reference end, a thermoelectric potential is generated and the working instrument displays the temperature value corresponding to the thermoelectric potential.
Product Features:
•Less thermal response time, reducing dynamic errors.
•Bendable mounting for use.
•Large measuring range.
•High mechanical strength, good pressure resista nee.
•Junction box protection level IP65, Ip66.

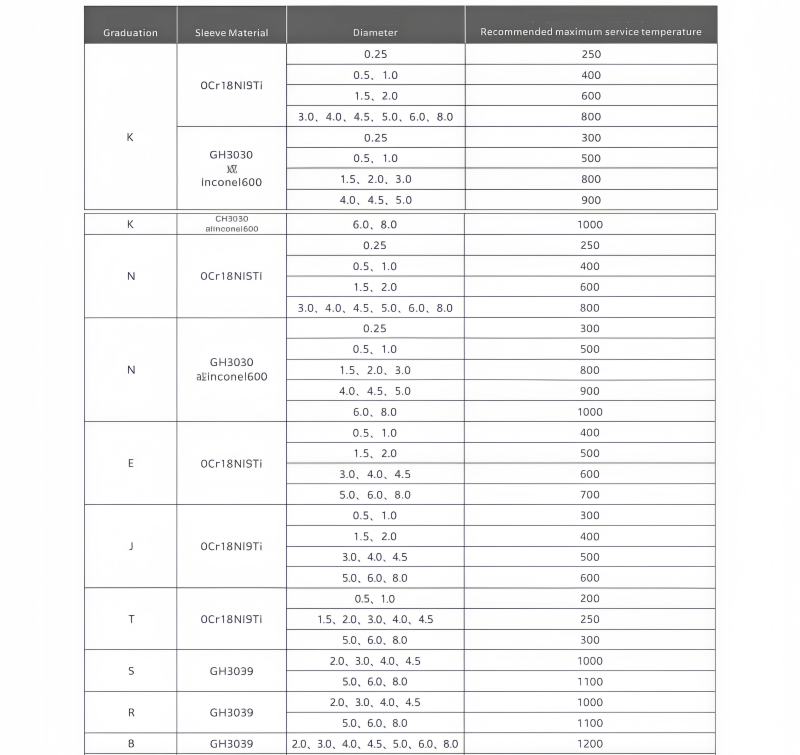

Sleeve material, outer diameter and maxim um service temperature:
Terminal box form:

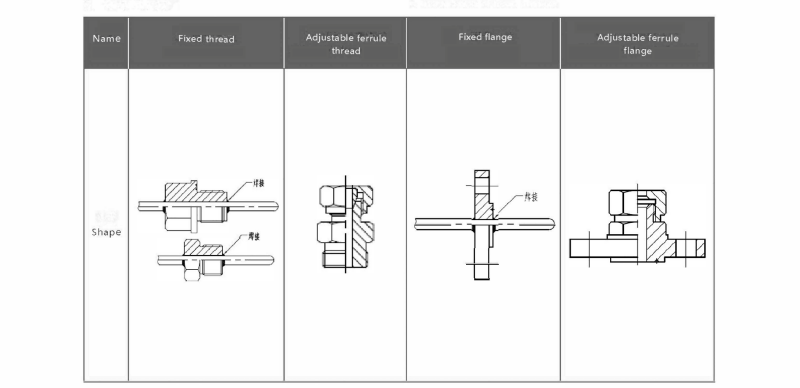

Installation of fixed devices:
