Pressure gauge

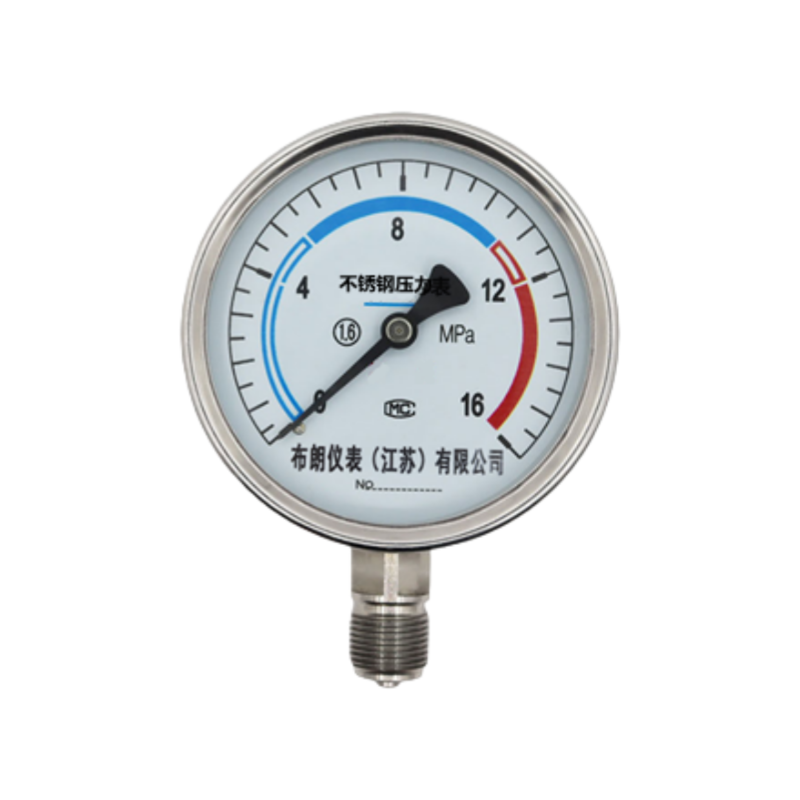

Stainless Steel Pressure Gauge

Accuracy:    Class 1.0, 1.6, 2.5
Range:    0～0.6…6.0 -0.1～0 -0.1…2.4…60MPa Stainless Steel Pressure Gauge.png  Case Material:    304SS Protection Rating Shock-Resistant IP64
Bourdon Tube:    316LSS
Movement:    304SS
Connectors:    304, 316SS
Connection Threads:    M14×1.5, M20×1.5, G, ZG, NPT
Operating Temperature:    -40°C to ≤200°C
Vibration Rating:    V, H, 4
Operating Pressure:    Static pressure up to 3/4 of measurement upper limit; alternating load up to 2/3 of measurement upper limit
Seal:    Nitrile, Teflon, Rubber
Temperature:    -40～70℃
Shock-Resistant Type:    Includes argon arc welding of fittings and case, case filled with silicone oil

Seismic Pressure Gauge

Accuracy:    Class 1.0, 1.6, 2.5
Range:    0～0.6…6.0 -0.1～0 -0.1…2.4…60MPa
Case Material:    304SS
Protection Rating (Shock-Resistant Type): IP64
Bourdon Tube:    316LSS
Movement:    304SS
Connectors:    304, 316SS
Connection Threads:    M14×1.5 M20×1.5, G, ZG, NPT
Operating Temperature:    -40～≤200℃
Vibration Type:    V, H, 4
Operating Pressure:    Static pressure up to 3/4 of measurement upper limit; alternating load up to 2/3 of measurement upper limit
Seal:    Nitrile, Teflon, Rubber
Temperature:    -40°C to 70°C

Shock-Resistant Type:    Features argon arc welding at the joint and case, with the case filled with silicone oil.

Electrical Contact Pressure Gauge

Surface Diameter:    100   150
Accuracy:    Class 1.0, Class 1.6
Range:    0～0.06…60   -0.1…2.4…60MPa
Case Material:    Standard 08F powder-coated, Stainless Steel 304SS
Bourdon Tube:    Phosphor Bronze Tube Qsn4-0.3, Stainless Steel 304, 316LSS
Seal:    Nitrile, Silicone, Teflon
Connection Thread: M20×1.5 GZGNPT
Vibration-Resistant Type Fluid: Silicone Oil   Transformer Oil
Operating Vibration: V, H, 3 Vibration-Resistant Type: V, H, 4
Protection Rating: IP64

Diaphragm Pressure Gauge

Protection Rating: IP64
Case Outer Diameter: ∅100 ∅150
Accuracy: Class 1.6
Case Material: 304SS PVC
Bourdon Tube: 304, 316LSS
Connection Fitting: 304, 316LSS
Shock-Resistant Type: Case filled with silicone oil.
Sanitary Type: Case filled with medical-grade glycerin.
Filling Oil: Silicone oil filled internally
Separation Diaphragm: 316LSS, Hastelloy C-276, Monel, Cu30Ni70,
Titanium, PTFE, Tantalum
Special Requirements: PTFE-lined isolation chamber, PTFE-coated diaphragm surface
Case: Epoxy resin-coated case surface. IP64 protection rating
Sealing Material: Nitrile, silicone, fluorocarbon, rubber, PTFE
Surface Glass: Acrylic, tempered glass, PC, or double-layer explosion-proof glass

Diaphragm Pressure Gauge

Housing Dimensions: ∅100   ∅150
Accuracy: Class 1.6, Class 2.5
Range: 0～60kPa ±1～±20kPa
Housing: 08F Powder-coated 304 304LSS
Diaphragm: Phosphor bronze, beryllium copper, 304, 316LSS
Connectors: Copper alloy, 304, 316SS
Movement: Copper alloy, 304SS
Connection: M20×1.5, G, ZG, NPT
Relative Humidity: ≤85% RH
Temperature: -20 to 55°C
Sealing Material: Nitrile, Teflon rubber, PTFE
Protection Rating: IP64

Diaphragm Pressure Gauge

Case Outer Diameter:    ∅100 ∅150
Measuring Range:    0～0.01～40kPa   0～0.01～2.5MPa
                  -0.1～0MPa
Upper/Lower Body Flange:∅100   ∅120
Accuracy Class:    l.6   2.5
Flange Material:    304, 316LSS
Diaphragm Material:    3J1, 3J53, 316LSS with PTFE-coated surface
Movement:    304SS
Connection:    M20×1.5 G, ZG, NPT
Temperature:    -40～70℃
Seal:    Nitrile, Teflon rubber, PTFE
Protection Rating:    IP64
Working Pressure:    Static load: Up to 3/4 of measurement upper limit
          Alternating load: Up to 2/3 of measurement upper limit
Working Vibration:    V, H, 3 (Shock-resistant type: V, H, 4)
